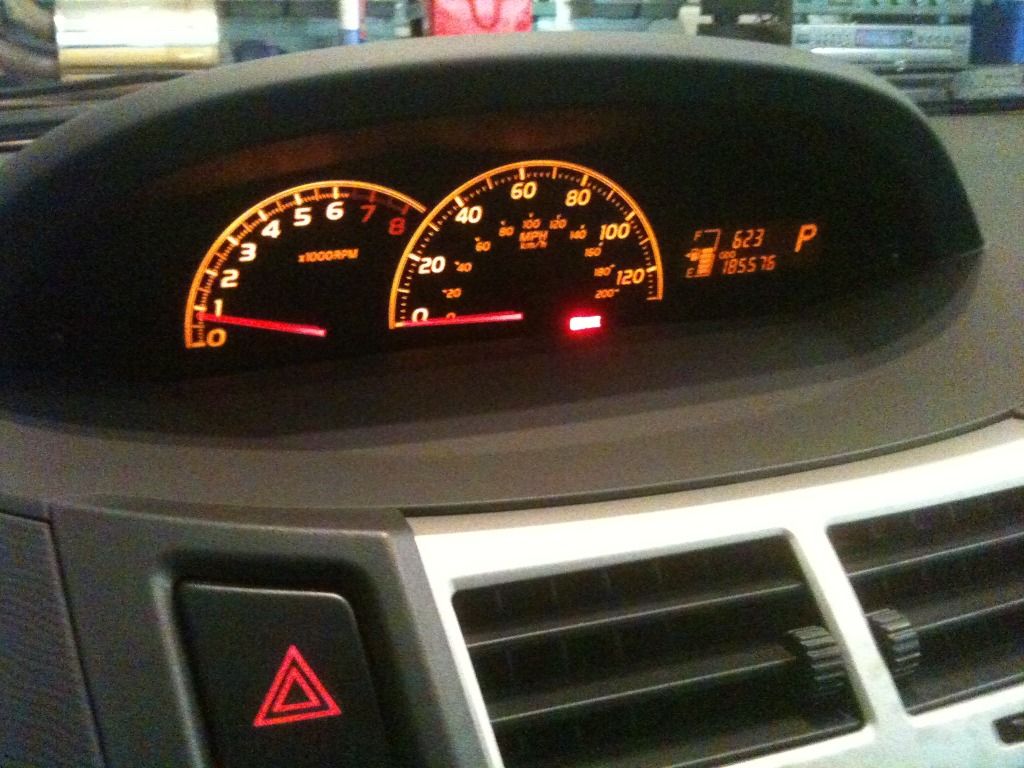

Yaris S gauge cluster install in my 2009! - Toyota Yaris Forums

firebird1999us · 09-05-2014, 08:37 PM

Took 10 minutes max and works like a charm!

CrankyOldMan · 09-05-2014, 10:39 PM

Did you have the odometer matched? I swapped mine out but didn't bother since MI only requires you to note the existence of the discrepancy, not the difference.

CTScott · 09-05-2014, 11:48 PM

Quote:

Originally Posted by CrankyOldMan

Did you have the odometer matched? I swapped mine out but didn't bother since MI only requires you to note the existence of the discrepancy, not the difference.

I matched the odo for him.

axiom · 09-06-2014, 12:58 AM

Man! How do I get one of these?

Kalispel · 09-06-2014, 01:36 AM

Forgive my ignorance, but how is the "Yaris S gauge cluster" different from the base gauge cluster? Tachometer?

bladesmith6 · 09-06-2014, 02:26 AM

ctscott is the bomb! i had him switch the leds to blue and match the odo reading, love my cluster.

CTScott · 09-06-2014, 08:34 AM

Quote:

Originally Posted by Kalispel

Forgive my ignorance, but how is the "Yaris S gauge cluster" different from the base gauge cluster? Tachometer?

For the US market, prior to 2010 only "S" Yaris had the tach.

ezhacker1 · 09-06-2014, 09:50 AM

Wow I haven't seen a S cluster in a long time, you , I and few others have these and not the Canadian ones.

Now I'm still hoping for a digital LHD one

firebird1999us · 09-06-2014, 09:56 AM

Big thanks to CTscott for programming the correct mileage and shipping it down here for me! I know it's more less just a cosmetic mod but I missed not having a tach and didn't want to do a non-matching aftermarket piece. Install was really a piece of cake!

axiom · 09-06-2014, 11:03 AM

Seriously, how'd you get it? I would love to get one. Thanks!

Kar98 · 09-06-2014, 01:49 PM

I forgot, is there such a thing as instrument cluster for a manual Yaris 2, with tach?

CTScott · 09-06-2014, 01:53 PM

Quote:

Originally Posted by axiom

Seriously, how'd you get it? I would love to get one. Thanks!

I had picked that one up from a local junkyard quite a while ago. The S ones are very hard to find, as there are not many of them around, let alone wrecked.

I can also convert Canadian ones to have he odometer increment in miles and have the outer ring of the speedometer indicate mph, rather than km/h. The Canadian ones are way easier to find, as tachs were not just for S models up there.

ezhacker1 · 09-06-2014, 10:28 PM

Yeah its pretty rare to see any S yaris. Came down to luck for me to snatch it off of the forums.

CTScott · 09-06-2014, 10:56 PM

Quote:

Originally Posted by Kar98

I forgot, is there such a thing as instrument cluster for a manual Yaris 2, with tach?

Only 2010+ for the US.

beaker · 09-20-2014, 08:22 AM

I have an 07 Yaris hatchback, auto trans, non abs.

If I wanted to do this upgrade, what cluster do I need to look for? Anyone have a part # or which model yaris to look for to get a cluster out of? Will a sedan cluster work in my hatchback?

Thanks

CTScott · 09-20-2014, 08:56 AM

Quote:

Originally Posted by beaker

I have an 07 Yaris hatchback, auto trans, non abs.

If I wanted to do this upgrade, what cluster do I need to look for? Anyone have a part # or which model yaris to look for to get a cluster out of? Will a sedan cluster work in my hatchback?

Thanks

Sedan cluster is a different shape and has a different connector. You need specifically an 07 or 08 S cluster without ABS. I don't have the part number handy, but there is only one cluster that meets that spec.

For non direct solutions, you can use an 09-11 cluster, but all 09+ have ABS, so the ABS and BRAKE lights would have to be disabled or they would always be on. For 2010-2011 the TRAC light would also have to be disabled.

beaker · 09-20-2014, 09:36 AM

Quote:

Originally Posted by CTScott

Sedan cluster is a different shape and has a different connector. You need specifically an 07 or 08 S cluster without ABS. I don't have the part number handy, but there is only one cluster that meets that spec.

For non direct solutions, you can use an 09-11 cluster, but all 09+ have ABS, so the ABS and BRAKE lights would have to be disabled or they would always be on. For 2010-2011 the TRAC light would also have to be disabled.

Cool, thanks for the answer.

Which of the clusters you have listed above also have the cruise and foglight indicators that I could also utilize when I add these options to my car?

beaker · 09-24-2014, 09:31 PM

Quote:

Originally Posted by firebird1999us

Took 10 minutes max and works like a charm!

I'm jealous.

Wish I could find one to put in my car.

09-05-2014, 08:37 PM	#1
firebird1999us Drives: 2003 Mach 1 Join Date: Oct 2008 Location: Georgia Posts: 293	Yaris S gauge cluster install in my 2009! Took 10 minutes max and works like a charm!

09-06-2014, 09:50 AM	#8
ezhacker1 Drives: Decepticon - Ravage Join Date: Nov 2008 Location: San Francisco Posts: 1,464	Wow I haven't seen a S cluster in a long time, you , I and few others have these and not the Canadian ones. Now I'm still hoping for a digital LHD one __________________ Check out my Build thread: http://www.yarisworld.com/forums/showthread.php?t=52274

09-06-2014, 10:28 PM	#13
ezhacker1 Drives: Decepticon - Ravage Join Date: Nov 2008 Location: San Francisco Posts: 1,464	Yeah its pretty rare to see any S yaris. Came down to luck for me to snatch it off of the forums. __________________ Check out my Build thread: http://www.yarisworld.com/forums/showthread.php?t=52274

09-20-2014, 08:22 AM	#15
beaker Drives: 07 Yaris 3 door Join Date: Feb 2013 Location: conyers ga Posts: 87	I have an 07 Yaris hatchback, auto trans, non abs. If I wanted to do this upgrade, what cluster do I need to look for? Anyone have a part # or which model yaris to look for to get a cluster out of? Will a sedan cluster work in my hatchback? Thanks Last edited by beaker; 09-20-2014 at 08:52 AM.
